Name: Sound Devices HX-3 Portable Headphone Distribution Amplifier
Brand: Sound Devices
SKU: HX-3
Availability: InStock

Description

HX-3 Key Features List

Three isolated headphone outputs with individual volume controls.
125 dB dynamic range with flat frequency response.
Durable 1/4-inch connectors, panel mounted for strength.
Stereo or mono monitoring.
Peak LED indicates headphone overload.
Two balanced XLR line level inputs or unbalanced 1/4-inch and 1/8-inch stereo inputs.
Loop Output to connect additional HX-3’s in series.
All-metal connectors solidly mounted to the chassis for durability and RF immunity.
Free from “Pin-1” grounding problems.
Internal battery-power for up to 18 hours from two AA alkaline batteries.
Chassis-isolated 5 to 18 VDC input for easy external DC powering.
Power LED indicates low battery power.
High strength, extruded aluminum chassis with protective metal end panels.

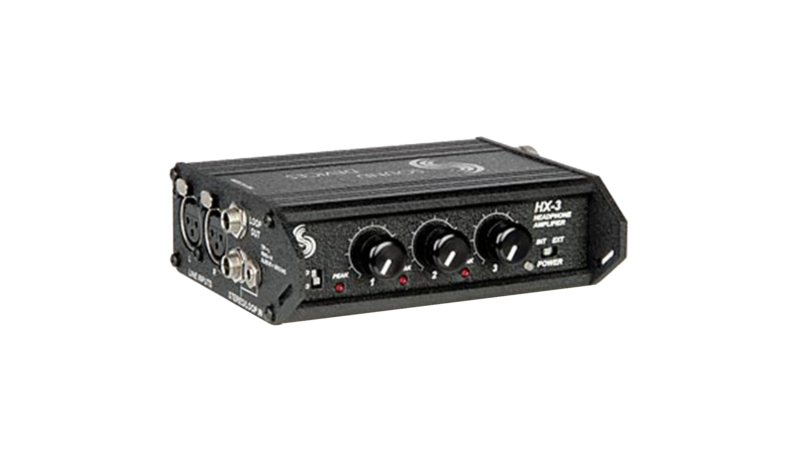

The HX-3: Portable Headphone Distribution Amplifier

The compact HX-3 Headphone Distribution Amplifier is the perfect accessory to quickly provide three high-performance stereo headphone feeds with individual level controls from line-level sources. The HX-3 can produce very high headphone levels with extremely low noise and distortion.

Great for Radio, TV, Film, and Music Productions

The HX-3 accepts balanced XLR line-level inputs or unbalanced 1/4-inch and 1/8-inch stereo inputs. Its 1/4-inch loop-out can connect multiple HX-3’s for additional headphone outputs. Headphones are connected to panel-mounted 1/4-inch stereo connectors.

The HX-3 has a durable aluminum chassis to withstand the punishment of field and studio environments. The unit is powered by inexpensive batteries (two-AA) or external 5-18 VDC.

Go here for recommended third-party power supplies and recommended third-party locking connectors.

The HX-3 can add headphone outputs to the 552, 302, MM-1, and USBPre-2.

One-year standard warranty turns into two-years upon registration.

Click Here for more information.

What’s in the box:

HX-3 Headphone Amplifier
Headphone adapter cable (1⁄4 inch to 1⁄8 inch)
Coaxial female power connector
4 Adhesive rubber “bumpers”

Specifications

Frequency Response

10 Hz – 50 kHz, -±1.0 dB, any input to any output, gain controls set to 50%

Voltage Gain

34 dB from balanced line to headphone output, 35 dB from headphone input to headphone output

Output Clipping Level

+18 dBu minimum with 600 ohm load, +16 dBu minimum with 300 ohm load

Headphone Output Impedance

200 ohms

Input Clipping Level

XLR: +24 dBu minimum
1/4-inch and 1/8-inch inputs: +22 dBu minimum

Dynamic Range (balanced line inputs)

0.03% maximum (from 10 Hz to 22 kHz @ +10 dBu input and output level, 300 ohm load, 10 Hz – 22 kHz filter bandwidth)

Inputs

XLR: electronically balanced, 22k ohm input impedance, 1/4-inch unbalanced: 9.1k ohm impedance
1/8-inch unbalanced: 9.1k ohm impedance.

Internal Voltage Rails

±15 V, regulated

Power Source

Internal: 2 AA alkaline batteries, 18 hours life typical with nominal levels. External: 5 – 17 VDC via threaded coaxial connector (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative.

Power LED

Green indicates power and good battery. Red indicates power with low batteries. LED turns red when ~ 4 hours of battery life remain.

Operating Temperature Range

0 to 70 degrees C
32 to 160 degrees F

Dimensions

43 mm x 94 mm x 140 mm (h x w x d) (1.7″ x 3.7″ x 5.5″)

Weight (unit only)

0.56 kg
1.24 lbs

Included Accessories

1/4-inch to 1/8-inch trs interconnect cable, rubber feet (4), locking DC jack
